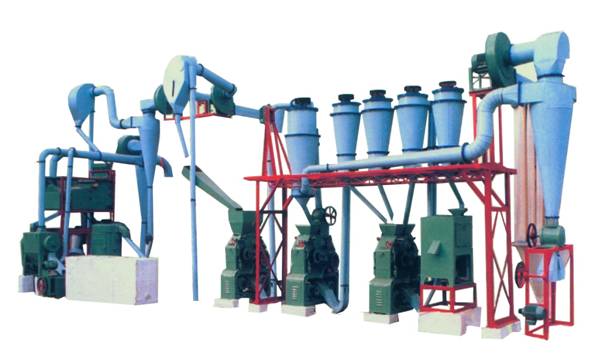

This 20T small scale flour milling technological process is advanced and the output is high. The screenroom adopts one sifter, one scourer, one destoner and one dampering. the purifer adopts three sets of 6F1820*2 style flour milling machine, four sets of reel separator and one set of core lifter, the structure is compact and nice appearance.
It adopts small scale flour milling unit, low investment and high efficiency, is a small complete set of equipment which can produce continuously. It is the epitome of the big unit and the design is principle, operation is simple, maintenance is easy and cover little area.
The main feature is :
1) Two sets of mill can produce continuously and process the wheat 20tons within 24 hours.
2) The flour can be adjusted according to the market's requirement.
3) The covering area: L×W×H=16.5×5×4(m)
4) Power consumption low the state standard, the total power is: 41.3KW.
5) The tempering tank includes three parts, the size of each tank is: L×W×H=2.5×2×2(m) (user provide for oneself)
4. The main technical parameter
1) Output: process 20T wheat within 24 hours
2) Extraction flour : when the quality of the wheat conform the stipulation of China GB1351 <wheat> the volume weight is over 770g/L standard flour: 80-85%
3) Total power: 41.3KW, the voltage: 380V;50HZ.
4) Water content: add 2-3 percent water to the wheat according to the water content of raw wheat materials.
