80-500 TPD Wheat Flour Milling

We have a 100-500 ton per day (t/d) series of complete wheat flour processing machine designed as mult-story plant. It utilizes a square plansifter and newly developed wheat flour milling. They were designed by KMEC's engineers after undertaking a thorough analysis of flour milling process from all over China. The resulting compact, low cost, simple, quickly assembled machinery produces high yields and is the first choice of medium and large wheat flour milling plants.

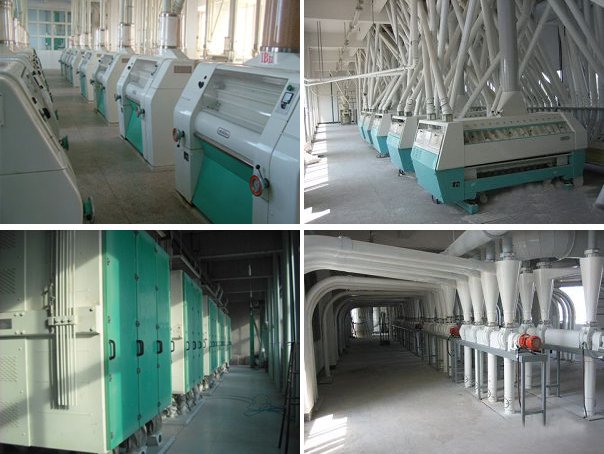

Flour Mill Machines in Multi-storey Plant


flour equipment in multi-storey plant



200 TPD Wheat Flour Milling
Technical specifications of the flour milling process: 4B, 7M, 1S, 2T, 2BrF, 1BrB and 5P.
Wheat Flour Process Machine: 3 sieves, 2 scourers, 2 stoners, 1 foreign seed extractor, 3 magnetic separation units, and 1 dampener.

Grades Capacity (t/d) Power consumption per ton of flour (KWh) Power (KW) Workshop Dimensions (L*W*H)(m)
Grade2, Special flour 200 60-70 600 45*7.5*23



Besides multi-story only operation, these processes can be stacked over two or more stories (see also our Flour Mills section).


Model Workshop size Wheat Flour Milling Process Power (KW)
250 TPD Wheat Flour Milling 48×7.5×27.6
Six-stories twin-span construction
Cleaning:100×200 sieve, 100×150 roto-sifter, 45×100 wheat scourer, 40 wheat brushers, 100 cyclone sieves, 125 gravity stoners, 150 sucking stoners, foreign seed extractor, 15 intensive dampeners, auto-atomizing dampener, and a duster and elevator combined cleaning process.


Flour milling:16 sets of 100×2 electronically controlled flour mills, 5 sets of 8×22 high plane sieves, 1 set of 4×24 plane sieves, 5 sets of 49×2×3 purifiers, 3 sets of 45×2 multiple bran finishers, vibrating circular screen, bran brush, pulsed jet filter, and an auto bran packing machine that combines the 5B, 2S, 12M, and 10P flour milling processes.

780
300 TPD Wheat Flour Milling 50×7.5×27.6
Six-stories twin-span construction
Cleaning:150×200 sieve, 125×150 plane rotation sieve, 45×100 wheat scourer, 45×100 wheat scourer, 40 wheat brushes, 100 cyclone sieves, 125 gravity stoners, 150 sucking stoners, foreign seed extractor, 15 intensive dampeners, auto-atomizing dampener, and a duster and elevator combined cleaning process.


Flour milling:16 sets of 125×2 electronically controlled flour mills, 5 sets of 8×22 high plane sieves, 1 set of 4×24 plane sieves, 6 sets of 49×2×3 purifiers, 3 sets of 45×2 multiple bran finishers, vibrating circular screen, bran brush, pulsed jet filter, and auto bran packing machine that combine the 5P, 2S, 12M, 12P and flour milling processes.

1070
